PRODUCTS
ENGINEERED PRODUCTS FOR YOUR SPECIFIC FLOW CONDITIONS

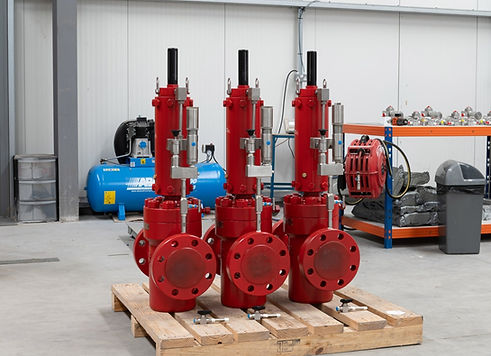

ENGINEERED VALVES
The company provides a broad range of valves that are available in a wide variety of materials from today’s leading valve manufacturers to fully meet even the most complex and unique requirements, we source and provide global quality, total reliability valves for our customer worldwide. All our manufactures and associated suppliers are selected according to standards of reliability.
Customer service is expressed in the capability of offering personalized advice based on individual needs, we therefore enjoy a good reputation not only as supplier of valve but also a reliable partner to our customer in plant design, manufacture and maintenance projects.
Types of Valves:
Ball Valves:
-
Cryogenic
-
Flanged
-
Threaded & SW
-
Floating
-
Metal Seated
-
Plastic Lined
-
Resilient Seated
-
Trunnion
-
Top Entry
-
“V” Port
Butterfly Valves:
-
High Performance
-
Plastic Lined
-
Resilient Seated
-
Triple Offset
-
Plug Valves:
-
Lubricated
-
Non-lubricated
-
HF Acid
-
Plastic Lined
Check Valves:
-
API6A / API6D
-
Lift Check
-
Piston Check
-
Swing Check
-
Wafer Check
-
Y Pattern Check
Subsea Valves:
-
Ball
-
Gate
-
Choke
Specialty Valves:
-
Bellow seal
-
Control / Safety
-
Cryogenic
-
Diaphragm
-
HF Acid
-
Knife Gate
-
Needle
-
Pinch
-
Pressure Seal / Relief
-
Vacuum Breaker
Multi-Turn Valves:
-
Gate
-
Globe
Technical Specifications:
Valve Size: 1⁄2 ” thru 60” (Larger sizes available upon request)
Classes: 150, 300, 400, 600, 900, 1500, 2500, and 4500
Products:
-
Forged / Cast Steel
-
Ball, Butterfly (Double /Triple Offset, Rubber Lined) Check, Gate, Globe
-
-
Special /Optional Design
-
Bellow Seals, Extended Bonnet, Pressure Seal, Cryogenics Services, Nuclear Service
-
Body:
Carbon Steel, Stainless Steel, Cast /Ductile Iron, PVC /CPVC /PP /PVDF, Alloy, Duplex,
Chrome and Exotics
Design Construction – Inspection and Testing:
API 600, 602, 603, 604, 607, 609, API 6A, API 6D, API 598, API 6FA, ASME/ANSI B16.34,
BS 5351, 5352, BS 636, 6755, MSS SP25, JIS and GOST.
End Connections:
RF, BW, RTJ, FF, PE, THD, SW
End to end flanged valves are in accordance with ASME/ANSI B16.5, 1
6.47 (Series A & B) and B16.10 or DIN Standard. Socket Weld ends to
ASME/ANSI B16.11. Thread ends to ASME/ANSI B1.20.1. Butt Weld ends
to ASME/ANSI B16.25.
VALVE ACTUATORS
The company has been providing automated valves ever since it's incorporation, from simple bolt-up, quarter-turn to an advanced, fully integrated quarter-turn, multi-turn and linear automation provider. The combination of our global strength and our local, technical service simplifies automation maintenance by enabling us to become the single point of contact for all aspects of our customers’ automation needs.
We represents the premier valve automation lines in the industry. We provide our customers with everything from simple on-off packages to throttling applications, high pressure gas systems, over pressure protection and emergency shutdown assemblies. Our qualified, technical staff will customize your valve automation requirements to your unique product specifications and identify the most efficient solution for your needs.
Types of Actuators:
Electric Actuators:
-
Fail-safe
-
Modulating
-
On-off
Fluid Power Actuators:
-
Electro-Hydraulic
-
High Pressure Gas System
-
Piston
-
Rack & Pinion
-
Scotch Yoke
-
Spring Diaphragm
-
Vane
-
Water-Hydraulic
Manual Actuators:
-
Spring-Return Handles
-
Gear Operators
-
Valve Indicators
-
Switches
Limit Switches:
-
Mechanical
-
Proximity Type
Positioners:
-
Digital
-
Electro-Pneumatic
-
Pneumatic
PIPE FITTINGS
The company manufactures, supplies and distributes a wide range of fittings, such as elbows, tees, reducers, caps, bends and many others from 1/2" to 120" diameter in all material grades, according to international standards and clients' requirements.
The target markets can be divided into up/mid/downstream, which includes onshore and offshore/subsea plants, oil & gas pipelines, refineries, and power generation such as nuclear and thermal power plants. The company manages the whole cycle of production, distribution and after-sales services in all these markets. EPC companies represent the largest part of its capacity. Close co-operation with clients gives the company the opportunity to develop the market and the products in line with trends in the field of energy.
Standard Fittings
-
Elbows
-
Up to 120",
-
All Grades -
-
Seamless and Welded (Cold and Hot Formed and By Mandrel)
-
-
-
Equal And Reducing Tees
-
Up to 120"
-
All Grades
-
Seamless and Welded (Cold and Hot Formed)
-
-
-
Concentric and Eccentric Reducers
-
Up to 120"
-
All Grades
-
Seamless and Welded (Cold and Hot Formed)
-
-
-
Caps
-
Up to 120"
-
All Grades
-
Seamless (Cold and Hot Formed)
-
-
Special Fittings
-
Reducing Elbows
-
Up to 60",
-
All Grades
-
Seamless and welded
-
-
-
Special Radius Bends (3D)
-
Up to 56"
-
All Grades
-
Seamless and Welded Segmentable
-
-
-
Special Radius Bends (2.5D, 3D, 4D, 5D, 7D, 10D, 18D)
-
Up to 56"
-
All Grades
-
Seamless and Welded (Hot Induction and Cold Formed)
-
-
-
Barred Tees
-
Up to 120"
-
All Grades
-
Seamless and Welded (Cold and Hot Formed)
-
-
-
Special Flow Tees
-
Up to 60"
-
All Grades
-
Seamless and Welded
-
-
-
Equal and Reducing Crosses
-
Up to 60",
-
All Grades
-
Seamless and welded
-
-
-
Equal and Reducing Laterals
-
Up to 60",
-
All Grades
-
Seamless and welded
-
-
Special Products
-
Headers and Extruded Manifolds
-
Up to 120",
-
All Grades
-
Seamless and Welded
-
-
-
Split Tees
-
Up to 120",
-
All Grades
-
Seamless and Welded
-
-
-
" Y" Pieces
-
Up to 120",
-
All Grades
-
Seamless and Welded (Hot Induction and Cold Formed)
-
-
Special Products as per customer drawings.
PIPPING FLANGES
The company specializes in manufacturing, supplying and distributing high pressure, large diameter, high yield, and specialty flanges. Our flanges can be manufactured as Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Orifice and other less common face types like Large Groove or Female Faces are also available.
We are well equipped to meet customer requirements. In conjunction with our correspondence companies, a massive inventory of our flanges is in stock and ready to ship – allowing us to meet tight deliveries with quality product and customer service.
Manufacturing and Supplying /Distribution of Flanges:
-
Types : Slip-On Flanges, Weld Neck Flanges, Blind Flanges, Lap Joint Flanges, Threaded Flanges, Socket Weld Flanges, Reducing Flanges and Orifice Flanges.
-
Sizes : 1/2" ~ 72" (larger size available upon request) - All Wall Thicknesses & Schedule
-
Pressure : 150# to 2500# (ASME/JPI/NORSOK), PN2.5 to PN400 (DIN/EN) and 5K to 64K (JIS)
-
Standards : ASME 16.5, ASME B16.47 "A" & "B", BS3293, BS/EN 1092-1, JIS B2220, JPI, AWWA C207, DIN, TAYLOR, NORSOK, API FLANGES (API 6A 6BK, API 17A, SWIVEL ANSI/ASME B16.36 (ORIFICE), ANSI/ASME B16.48 API590 /FIG.8, ASME B16.5
-
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized.
Our flanges comply to NACE MR0175, NACE MR0103, ISO 15156-2
Materials of Construction:
Carbon Steel Flanges:
-
ASTM A105 (high-temperature carbon steel) to match A53, A106, API 5L carbon steel pipes
-
ASTM A350 LF1, LF2, LF3 (low-temperature carbon steel) to match ASTM A333 pipes
-
ASTM A694 F42, F52, F60, F65 (high-yield carbon steel to match API 5L X42, X52, X60, and X65 steel pipes.
-
ASTM A694 F46, F48, F50,F56, 70 (High -yield carbon steel flanges)
-
CSA Z245.12 (359 CAT2 - 483 CAT2)
Stainless Steel Flanges:
-
ASTM A182 F304, F304H, F304L, F304N, F304LN, F309H, F310, F310H, F31MoLN, F316, F316H, F316L, F316LN, F316Ti, F317, F317L, F321, F321H, F347, F347H, F348, F348H
Alloy Steel Flanges:
-
A182 F1, A182 F2 , A182 F11, A182 F222, A182 F5/F5a, A182 F9 and A182 F91
Nickel Alloy Flanges:
-
Alloy 600 N06600 B366 (REF), B/SB 564, AMS 5665 B/SB 166
-
Alloy 601 N06601 AMS 5715 B/SB 166
-
Alloy 625 N06625 B366 (REF), B/SB 564, AMS 5666 B/SB 446
Incoloy ® Flanges:
-
Alloy 800 N08800 B 366 (REF), B/SB 564, AMS 5766 B/SB 408
-
Alloy 800H N08810 B 366 (REF), B/SB 564 B/SB 408
-
Alloy 800HT N08811 B 366 (REF), B/SB 564 B/SB 408
-
Alloy 825 N08825 B 366 (REF), B/SB 564 B/SB 425
-
Alloy C20 (F20) N08020 A 182, B 366, B/SB 462, B/SB 564 B/SB 472, B/SB 473
-
Alloy 330 N08330 B 366 (REF), AMS 5716 B/SB 511, B/SB 512
Monel ® AND Copper Nickel Alloy Flanges:
-
Alloy 400 N04400 B366, B/SB 564, QQ-N-281, MIL-F-23509 B/SB 164
-
70/30 CUNI C71500 MIL-C-15726, MIL-C-24679 B/SB 151
-
90/10 CU-NI C70600 MIL-C-15726, MIL-C-24679 B/SB 151
Hastealloy ® Flanges:
-
HAYNES 230 – 4 N06230 B/SB 564, AMS 5891 B/SB 572
-
HAYNES 242 – 4 N10242 B564, HAYNES PS-6085-2 B/SB 573
-
7-MO PLUS (F52) – 3S32950 A/SA182 A/SA 479
-
HASTELLOY-B3 – 4N10675 B462, B366 (REF), B/SB 564 B/SB 335
-
HASTELLOY-C22 – 4N06022 B462, B366 (REF), B/SB 564 B/SB 574
-
HASTELLOY-C276 – 4N10276 B/SB462, B/SB 564, AMS 5750 B/SB 574
-
HAST C-2000 – 4N06200 B/SB462, B/SB 564 B/SB 574
-
HASTELLOY-G30 – 4N06030 B/SB 462, B366 B/SB 581
Titanium Flanges:
-
Titanium Gr. 2, Gr. 5 and Gr. 12
Other Materials:
-
PP /PTFE /PVC /CPVC/UPVC & E.T.C
Download ENGIC Flanges Brochures: DIN EN 1092-1, JIS, AWWA C207 /C228
OIL COUNTRY TUBULAR GOODS (OCTG)
As the oil and gas industry has moved into more challenging extraction scenarios, the demands on drill pipe, tubular and casing have become increasingly rigorous. Whether the demand is from high pressure, thermal stresses or environmental factors, Engic knows what it takes to meet the needs of today’s energy sector.
Tubing
The company supplies high-quality tubing designed to withstand the rigors of transporting oil and gas from the production zone to the surface. This tubing is currently in use by our customers as an integral part of well production in numerous locations worldwide.
Material / Grade: API 5CT H-40, J-55, L-80, N-80 Type1, N-80Q, C-90, T-95 and P110.
Weld Alternatives: ERW and Seamless
OD Size Range: 1.050" through 4.50"
Lengths: Range 1, Range 2
Surface Finish: Bare or Regular Mill Coating
End Finishes: NU T&C, EU T&C, Buttress Thread, Premium
Non- Upset T&C Weight Range: 1.14#/FT through 26.10#/FT
External Upset Weight Range: 1.20#/FT through 12.75#/FT
Additional Services: Internal Coating
Casing
One of the main building blocks of well completion, casing is designed to isolate the well bore from the formation while resisting external collapse pressure as well as internal pressure from within. Our world-class casing is manufactured to API 5CT specifications, in sizes from 4-1/2” to 20” OD.
Material / Grade: H-40, J-55, K-55, L-80, N-80 Type 1, N-80Q, L-80 Type1, L-80 9Cr, L-80 13Cr, C-90, C-95, T-95, P-110, Q-125.
Specifications: API 5CT
Weld Alternatives: ERW and Seamless
OD Size Range: 4.5" through 20"
Weight Range: 9.5#/FT through 169#/FT
Lengths: Range 1, Range 2, Range 3
Surface Finishes: Bare or regular Mill Coating.
End Finishes: Plain End, 8RD, STC and LTC, Buttress Thread, Premium Connection
Additional Services: Vertical and Horizontal Slot
Drill Pipe
Drill Pipe are designed and recommended for well drilling in natural oil- and gas exploration projects. Tabulated sizes and upsets are available acc. to API specification 5DP. Other Sizes and Upsets will be delivered on request. Drill Pipe with friction welded (FW) tool joints, ready for drilling operations, manufactured together with our well named cooperation mills are supplied to our final customers. Further more finished and unfinished drilling goods, subject to final Drill Pipe manufacture, like drill pipe bodies with standard or special upset ends, are also applicable for delivery, within our capabilities.
Material / Grade: E-75, X-95, G-105, S-135.
Specifications: API 5 D
Weld Alternatives: Seamless
OD Size Range: 2.375" through 6.625"
Weight Range: 6.27#/FT through 27.72#/FT
Lengths: Range 2, Range 3
Surface Finishes: N/A
End Finishes: Internal Upset, External Upset, Plain End Upset, Non Upset
FW Tool Joints: Numbered Connections (NC), Internal Flush (IF), Full Hole (FH)
ENERGY TUBULARS
The company line of Energy Tubular include carbon and alloy products for the energy industry for the upstream, midstream and downstream operations. These products are manufactured in accordance with international standards and specifications that are used in exploration and production (E&P), the recovery and production of crude oil, natural gas and LNG, drilling of exploratory wells, operating the wells, as well as processing, storing, transportation and distribution.
Line Pipes
Line pipe is generally used for the conveyance of oil and gas in transmission lines, distribution main lines, and offshore pipeline systems. We supply welded and seamless API 5L grades through X 100 for high pressure applications, including Sour Service Solution A or B. we work closely with our customers to present solutions to match the required grades and specifications.
Material / Grade :
API 5L Grade B, API 5L X42, X52, X56, X60, X65, X70, X80, X100, PSL 1 and PSL 2
Weld Alternatives: ERW, HF, DSAW/SAWL, SMLS, HSAW
OD Size Range:
ERW: 0.375" through 30"
HF: 0.840" through 24"
DSAW/SAWL: 12.75" through 144"
SMLS: 0.840" through 26"
HSAW: 8.625" through 144"
Wall Ranges:
ERW: 0.120" through 1.000"
HF: 0.120" through 1.000"
DSAW/SAWL: 0.250" through 6.000"
SMLS: 0.250" through 2.500"
HSAW: 0.250" through 1.000"
Lengths:
Single Random, Double Random, Custom (up to 300")
Surface Finishes:
Bare, Oiled, Mill Varnish, Galvanised, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.
Additional Services:Internal Coating.
STANDARD TUBULARS
Our line of Standard Tubulars includes carbon and alloy products for the conveyance of liquids, gases, semi liquids (fluids), slurries or powders among many applications. These products are also often used for structural applications. They are manufactured in accordance with international standards and specifications for their specific applications.
Standard Pipe
Standard pipes is generally used for mechanical and pressure applications as well for steam, water, air and gas lines. Our supply welded and seamless steel pipe in ASTM and API specifications and grades for liquid, semi-liquid, steam and gas conveyance; including for high pressure service and lower and moderate temperatures.
Material / Grade :
A53 Grades A/B, ASTM A106 Grades B/C, AWWA, C200, ASTM A139, ASTM A120, API5L- B ASTM A671, A672 (Stress Relieved, Normalized and/or Tempered) in Various Classes
Weld Alternatives: ERW, HF, DSAW/SAWL, SMLS, HSAW
OD Size Range:
ERW: 2.375" through 30"
HF: 0.840" through 24"
DSAW/SAWL: 12.75" through 144"
SMLS: 2.375" through 26"
HSAW: 8.625" through 144"
Wall Ranges:
ERW: 0.154" through 0.750"
HF: 0.120" through 1.000"
DSAW/SAWL: 0.250" through 6.000"
SMLS: 0.219" through 2.500"
HSAW: 0.250" through 1.000"
Lengths:
Single Random, Double Random, Custom lengths are also available
Surface Finishes:
Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar Enamel, Tape Wrap,
Paper, Wrap, Cement Mortar, Liquid Epoxy Lining and Glass,Cloth. Vertical Slotting available up to 0.500" w/t
End Finishes:
Beveled, Square Cut, Bell & Spigot, Flanged, Victaulic,Threaded & Coupled.
Additional Services:
Vertical and Horizontal Slotting
STANDARD TUBULARS
Abrasive Resistant Pipes
Abrasive Resistant Pipe is designed for the conveyance of highly abrasive materials. we work closely with its customers to present solutions to match the required grades and specifications. The grades and specifications are made to control the hardness and resistance to abrasion factors, among other factors.
Material /Grade :
Gr. 2/3, X42, X52, X60, X65, X70, X80, X100 and 1035 Steel
Specifications :
ASTM A252, API 5L, AR
Weld Alternatives :
ERW, SAW, Spiral
OD Size Range : 10.75" through 48", Custom ID Sizes Available
Wall Ranges : 0.250"-1.00"
Lengths : Single Random, Double Random, Custom
Surface Finishes : Bare, Mill Varnish, Coated
End Finishes : Beveled, Square Cut, Flanged
Ductile Cast Iron Pipes
Ideal for water and wastewater systems requiring proficient corrosion resistance, ductility, and strength, our ductile iron pipe is easy to install and thrives in tough terrain. Mortar lined, available with push-on joints and exterior coating, including asphalt or epoxy options.
Material /Grade :
AWWA, ASME, ASCE, ASTM, NACE, NFPA, ISO, ANSI
OD Size Range : 4" (DN 100) through 48" (DN 1,200).
Wall Range : K8, K9, K10, K12
Lengths : 20' (6M)
Surface Finishes : Zinc coating, Bituminous Coating, Cement Lining.
End Finishes : Bell and spigot, push-on-joint, mechanical joint, flanged joints.
STRUCTURAL STEEL
In today’s world, we see and use steel structures everywhere. The existence of the railways we use every day from home to work, or one of the world’s most visited tourist attraction points Eiffel Tower, is made possible by the use of steel as a structural material. Thanks to its unique properties, all types of steel form a basis for our modern society.
Structural Pipe
Structural Pipe is generally used for heavy civil, highways & bridges, airports, railroad bridges, harbor berths & seawalls, tubular structures, utilities, building, foundation, and offshore platform building.
Material: API 2B Gr. B up to X80, ASTM A252 Gr. 2/3, ASTM A500 Gr. A/B/C, ASTM A513, ASTM A36, ASTM A572 Gr. 50, Surplus and other grades available.
Fabrication Alternatives:
CW, ERW, HSAW, SAW, SMLS
OD (Outer Dimensions):
CW: 0.375″ through 4.50″
ERW: 2.375″ through 24″
HSAW: 16″ through 144″
SAW: 18″ through 144″
SMLS: 2.375″ through 26″
Wall Ranges:
CW: Inquire
ERW: 0.154″ through 0.750″
HSAW: 0.250″ through 1.125″
SAW: 0.250″ through 2.500″
SMLS: 0.219″ through 2.500″
Lengths:
Single Random, Double Random, Custom lengths are also available
Surface Finishes:
Bare, Oiled, Mill Varnish, Galv, FBE, 3LPE, Coal Tar, Tape Wrap
End Finishes:
Beveled, Square Cut, Threaded and Coupled.
Offshore Structures
Structural Products for offshore platforms or oil rigs are used as elements for their construction, assembly and operation. we supply risers, conductor pipes, deck and jacket legs and piles among many other specialized tubular products.
Material/Grade:
ASTM A709, ASTM A588, ASTM A36, A573 Gr.58/70, A572 Gr. 42/50, A516 Gr. 60/65, ABS
A131, API 2H Gr. 50, API 5L X80.
Weld Alternatives:
Hot Rolled, Control Rolled, Thermal Mechanical Controlled Processed, Coiled, Normalized, Q & T, Stress Relieved, Blasted and Painted.
Thickness: Up to 8"
Width: Up to 154"
Lengths: Up to 720" for plate and 80,000# Weight for HRC.
Edge: Mill Edge, Custom Edge.
STRUCTURAL STEEL
Steel Beams and Shapes
Steel shapes are formed to specification following certain standards of chemical composition and strength. They can also be defined as hot-rolled products, with a cross section of special forms like angles, structural steel channels and beams/joints. Structural shapes are generally used for the riveted, bolted or welded construction of bridges, buildings and other structures.
Material/Grade:
ASTM A-36, ASTM A-572 Gr. 50, ASTM A-572 Gr. 60, ASTM A-572 Gr. 65, ASTM, A-588 Grade A, ASTM A-588 Grade B, ASTM A-588 Grade C
Product Alternatives:
Wide Flange Beams, H-Pile, Channel
Size Range:
WF Beams: 4"x4" - 44"x16"
HP Shapes: 8"x8" - 10"x10"
Channel: C3x4.1# - C12x25#
Weight Range:
WF Beams: 13#/FT - 335#/FT
Lengths: 20', 40', 60'
Surface Finish: Bare
End Finish: Mill
Combi-Wall & Tubular Sheet Pile
Combi-Wall systems add strength by combining king pile – steel beam or pipe pile – with sheet pile or tubular sheet pile attached by interlocks to withstand greater loads than traditional sheet pile wall. These retaining walls are ideal for temporary or permanent structures such as cofferdams, river frontages, quays, wharfs, docks, harbor works, permanent foundations and sea walls
Weld Alternatives: CW, ERW, Spiral, SAW, and SMLS
OD Size Range:
CW: 0.375" through 4.50"
ERW: 2.375" through 24"
Spiral: 16" through 144"
SAW: 18" through 144"
SMLS: 2.375" through 26"
Wall Ranges:
CW: Inquire
ERW: 0.154" - 0.750"
Spiral: 0.250" - 1.125"
SAW: 0.250" - 2.500"
SMLS: 0.219" - 2.500"
Lengths: Single Random, Double Random, Custom (Up to 190')
Surface Finish: Bare, Oiled, Mill Varnish, Galv, FBE, TLPE, Coal Tar, Tape Wrap.
Clutch: P-P, P-T, and Sheet Pile - Manufacturers compatible connectors.
STRUCTURAL STEEL
Plate Products
Steel plate is generally used for the oil and gas installations, ship building, storage tanks, rail cars, offshore platforms, pressure vessels, dams, bridges and highway construction and machinery.
Steel Plates for Structural Use :
JIS :
G 3101 SS330 SS400, G 3106 SM400, G 3131 SPHC SPHD SPHE, G 3136 SN400, G 3106 SM490 SM490Y, G 3136 SN490, G 3140 SBHS400, G 3106 SM520, G 3106 SM570*, G 3140 SBHS500, G 3128 SHY685 SHY685N SHY685NS, G 3140 SBHS700
ASTM:
A36, A131, A283, A529, A573 Gr. 58, A572, A573, A633, A709 Gr. 50, A841, A572 Gr. 60 Gr. 65, A678 Gr. C, Gr. D, A841, A514 A709 Gr. 100
API:
API 2H-42 2W-42, API 2H-50 2W-50, API 2W-60
BS /DIN:
EN10025 S185 S235 S275, EN10113 S275, EN10025 S355 E295, EN10225 S355, EN10113 S355, EN10225 S400, EN10113 S420, EN10225 S460, EN10025 E335, EN10113 S460, EN10137 S460, EN10137 S500, EN10025 E360, EN10137 S550 S620, EN10137 S690, EN10137 S890 S960
WES:
HW 355, HW 450, HW 450CF, HW 490, HW 490CF, HW 550, HW 620, HW 685, HW 885
SHIP Class :
A, B, D, E, A32, 36, 40 D32, 36, 40 E32, 36, 40 F32, 36, 40, A420, D420, E420, F420, A460, D460 , E460, F460, EH47, A500, D500, E500, F500, A550, D550, E550, A620, D620, E620, A690, D690, E690, F690
Steel Plates for Low Temperature Service:
JIS :
G 3127 SL2N255, G 3127 SL3N255 SL3N275 SL3N440, G 3127, SL9N520 SL9N590, G 3126 SLA325A SLA325B SLA360 SLA410
ASTM :
A203 Gr. A Gr. B, A203 Gr. D Gr. E, A353, A553
BS /DIN :
EN10028 12Ni14, EN10028 X8Ni 9, EN10028 X7Ni 9, EN10028 P275‘L’ P355‘L’, EN10113 P275‘L’ P355‘L’ P420‘L’, EN10028 P460‘L’
WES :
L T450, L T490, L T550, L T685
SHIP Class :
KL2N30, KL3N32, KL9N60, KL24, KL33, KL37
STRUCTURAL STEEL
Atmospheric Corrosion Resistant Steel Plates:
JIS :
G 3114 SMA400, G 3114 SMA490, G 3140 SBHS400W, G 3114 SMA570*, G 3140 SBHS500W, G 3140 SBHS700W
ASTM :
A242 Type2, A588
Steel Plates for Boiler and Pressure Vessels:
JIS :
G 3103 SB410 SB450 SB480, G 3115 SPV235 G 3118 SGV410, SGV450, G 3115 SPV315 G 3118 SGV480 G 3124 SEV245, G 3115 SPV355, G 3124 SEV295, G 3115 SPV450, G 3124 SEV345, G 3115 SPV490, G 3103 SB450M SB480M, G 3119 SBV, G 3120 SQV, G 4109 SCMV, G 4304 SUS, G 3601 SUS, G 3602 Ni , G 3603 Ti
ASTM :
A285 A515, A516 Gr. 55 Gr. 60 Gr. 65, A299 A455 A516 Gr. 70, A537 Cl. 1A841, A612, A537 Cl. 2 A738 Gr. B A841, A543 Cl. 1, A517 A543 Cl. 2, A204, A302, A533, A542, A387, A240, A263, A264, A265
BS /DIN :
EN10028 P235GH P265GH, EN10028 P295GH, EN10028 P355N, EN10028 P355GH, EN10028 P460N, EN10028 16Mo3, EN10028 Steel 621, EN10028 13CrMo4-5 10CrMo9-10 11CrMo9-10
WES :
HW 355, HW 450, HW 490, HW 620, HW 685, HW 885
SHIP Class :
KP42, KP46, KP49, KPV24, KPV32, KPV36, KPV46, KPV50, KPA46, KPA49, KPA56
Supply Types :
HR and CR Steel Sheet, Super Thick Plate, Heavy Plate.
Weld Alternatives : SAW or SMLS
OD Size Range : SAW: 14" through 144"
SMLS: 2.375" through 26"
Wall Ranges : SAW: 0.250" through 10"
SMLS: 0.219" through 2.5"
Lengths : Single Random, Double Random, Custom (up to 360')
Surface Finishes : Bare, Oiled, Mill Varnish, Galv, FBE, TLPE, Coal Tar, Tape Wrap.
End Finishes : Beveled, Transitions, Square Cut, other specialty ends.
ELECTRICAL CONDUIT'S
Our line of Electrical Conduits include hot-dipped and in line galvanized piping products for protection and routing of electrical wiring, supplied in rigid, IMC and EMT variations. They are manufactured in accordance with international standards and specifications to meet their specific requirements.
EMT, IMC & Rigid
Electric Metallic Conduit is thin-walled and lighter than other types of metallic conduit, with moderate flex for bendability. Made of high-grade strip steel, our Electric Metallic Conduit (EMT) meets UL 797 specifications and is manufactured to ANSI C80.3
Material/Grade :
ANSI C80.1, ANSI C80.3, ANSI C80.6, UL6, UL797, UL1242, NTC171, NTC105, NTC169
Weld Alternative : ERW
OD Size Range : 0.5" through 6"
Wall Ranges : 0.042" through 0.266"
Types : Rigid, EMT, IMC
Surface Finishes : Rigid: Hot-Dipped Galvanized
IMC: Hot-Dipped Galvanized
EMT: In-line Galvanized and Interior Coated
End Finishes : Plain End, Beveled or Threaded
OILFIELD AND DRILLING EQUIPMENT’S
We can fulfill all your needs for the work you do either in explorations or production, serving drilling and rig clients, we have acquired a reputation of excellence. we earned this reputation by providing not only top quality products but with our attention to detail and commitment to excellent customer consulting and service. We have the ability to meet all your needs and your unique specifications.
Mud / Solid Control Equipments:
Shale Shakers
Mud Cleaners
Desanders
Desilters
Degassers
Centrifuges
Centrifugal Pumps
Agitators Mud/Gas
Separators
Capital Drilling Equipments:
Top Drives
Mud Pumps
Draw-works
Rotary Tables
Traveling Hooks/Blocks
Hydraulic Power Units
Well Control Equipments:
Blowout Preventers (BOPs)
Choke & Kill Manifolds
Valves & Fittings
Control Stations
Oil Country Tubular Goods:
Drill Pipes
Tubing
Casing
Drilling Rig Packages:
Onshore Rigs
Offshore Rigs
Engineering & Services
